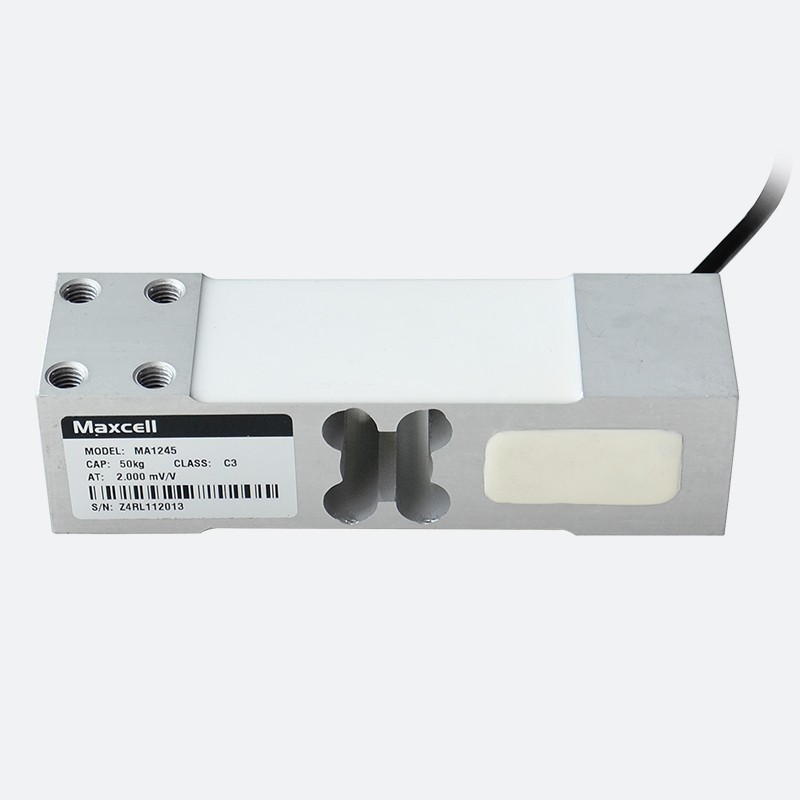

MA1245

产品介绍 Introductions：

- MA1245铝制单点称重传感器可以满足50kg-350kg量程范围内的精确称量

- 硅橡胶密封，表面阳极化，防腐性能佳

- 结构简单，安装方便

- 适用于电子平台秤、计价秤等各类电子称重设备

- 推荐秤台尺寸: 450*450mm

- MA1245 aluminum-alloy single point load cell can meet the accurate weighing in the capacity of 50kg-350 kg

- Silicone rubber seal, colourless anodized,and good corrosion resistance

- Simple structure, easy to install

- Suitable for pricing scales, bench scales, etc.

- Recommended platform size: 450 x 450 mm

产品尺寸 Dimensions：mm

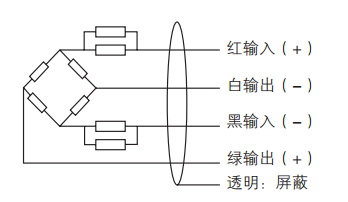

接线定义 Schematic：
